Tungsten Carbide End Mill with 90° Angle and Chamfer for Flat Shape Machining in Steel and Aluminum Alloy

Tungsten Carbide End Mill with 90° Angle and Chamfer for Flat Shape Machining in Steel and Aluminum Alloy
Tungsten Carbide End Mill with 90° Angle and Chamfer for Flat Shape Machining in Steel and Aluminum Alloy Tungsten Carbide End Mill with 90° Angle and Chamfer for Flat Shape Machining in Steel and Aluminum Alloy Tungsten Carbide End Mill with 90° Angle and Chamfer for Flat Shape Machining in Steel and Aluminum Alloy Tungsten Carbide End Mill with 90° Angle and Chamfer for Flat Shape Machining in Steel and Aluminum Alloy Tungsten Carbide End Mill with 90° Angle and Chamfer for Flat Shape Machining in Steel and Aluminum Alloy Tungsten Carbide End Mill with 90° Angle and Chamfer for Flat Shape Machining in Steel and Aluminum Alloy

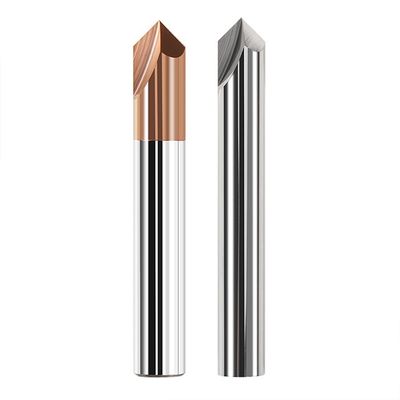

Gambar besar :  Tungsten Carbide End Mill with 90° Angle and Chamfer for Flat Shape Machining in Steel and Aluminum Alloy

Detail produk:
Tempat asal: Sichuan, Cina
Nama merek: KEDEL
Nomor model: 2 seruling
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10
Harga: $1.02-1.80
Kontak

Tungsten Carbide End Mill with 90° Angle and Chamfer for Flat Shape Machining in Steel and Aluminum Alloy

Deskripsi
Lapisan: Tialsin Bahan: Tungsten karbida berbutir halus 0,6um
Membentuk: Datar HRC: 55hrc
Sudut helix: / Seruling: 2
seruling seruling: 2 Sudut: 90 °
Diameter pemotongan: 0,1-0,9 Panjang Flutu: 0,2-1,8
Diameter betis: 4 Panjang keseluruhan: 50
Sudut Alur: 55° Bahan yang cocok: TEMBAGA, BAJA PADUAN, BAGIAN BAJA BIASA, BESI COR
Kompatibilitas mesin: Pusat Produksi CNC, Mesin Ukiran, Mesin Penggilingan CNC
Menyoroti:

55-Degree Straight Groove Tungsten Carbide End Mill

,

nACo4 Coating Tungsten Carbide End Mill

,

0.6um fine-grained tungsten carbide End Mill

Solid End Mill With 55-Degree Straight Groove and Chamfer
Premium cutting tool for steel and aluminum alloy machining
High-performance solid end mill designed for CNC machining centers, featuring a 55-degree straight groove and chamfer for optimal cutting performance in steel and aluminum alloy applications.
Tungsten Carbide End Mill with 90° Angle and Chamfer for Flat Shape Machining in Steel and Aluminum Alloy 0 Tungsten Carbide End Mill with 90° Angle and Chamfer for Flat Shape Machining in Steel and Aluminum Alloy 1 Tungsten Carbide End Mill with 90° Angle and Chamfer for Flat Shape Machining in Steel and Aluminum Alloy 2 Tungsten Carbide End Mill with 90° Angle and Chamfer for Flat Shape Machining in Steel and Aluminum Alloy 3 Tungsten Carbide End Mill with 90° Angle and Chamfer for Flat Shape Machining in Steel and Aluminum Alloy 4 Tungsten Carbide End Mill with 90° Angle and Chamfer for Flat Shape Machining in Steel and Aluminum Alloy 5
Technical Specifications
Parameter Value
Flutes 2
Chip Flute 2
Coating TiALSiN
Shape Drill
Angle 90°
HRC 65°
Tungsten Carbide End Mill with 90° Angle and Chamfer for Flat Shape Machining in Steel and Aluminum Alloy 6

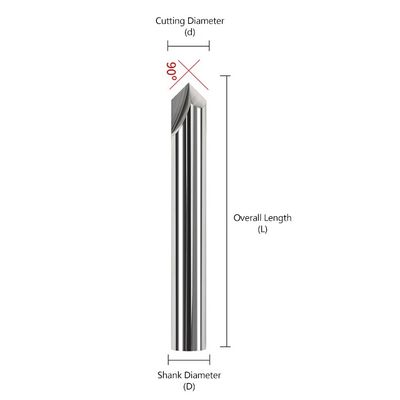

Dimensional Specifications
Number of Flutes Cutting Diameter (d) Flute Length (l) Shank Diameter (D) Overall Length (L)
Double blade 0.1 0.2 4 50
Double blade 0.2 0.4 4 50
Double blade 0.3 0.6 4 50
Double blade 0.4 0.8 4 50
Double blade 0.5 1 4 50
Double blade 0.6 1.2 4 50
Double blade 0.7 1.4 4 50
Double blade 0.8 1.6 4 50
Double blade 0.9 1.8 4 50
Tungsten Carbide End Mill with 90° Angle and Chamfer for Flat Shape Machining in Steel and Aluminum Alloy 7 Tungsten Carbide End Mill with 90° Angle and Chamfer for Flat Shape Machining in Steel and Aluminum Alloy 8
Company Profile
Tungsten Carbide End Mill with 90° Angle and Chamfer for Flat Shape Machining in Steel and Aluminum Alloy 9 Tungsten Carbide End Mill with 90° Angle and Chamfer for Flat Shape Machining in Steel and Aluminum Alloy 10

FAQ

Q How to obtain an accurate quotation from Kedel Tools?

A Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models, This will allow us to provide you with a more accurate quote.

Q How does our company ensure the quality of its products?

A We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.

Q How long does a typical production cycle take?

A For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.

Q What is our company's payment method?

A We accept wire transfers, L/C ,ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.
