Custom YG8 YG6 YG6X YG9C YG11C YG13C Tungsten Carbide Seal Ring with Density 12.33-15.0 g/cm³ and Hardness 86.5-93.6 HRA for High Performance

Custom YG8 YG6 YG6X YG9C YG11C YG13C Tungsten Carbide Seal Ring with Density 12.33-15.0 g/cm³ and Hardness 86.5-93.6 HRA for High Performance
Custom YG8 YG6 YG6X YG9C YG11C YG13C Tungsten Carbide Seal Ring with Density 12.33-15.0 g/cm³ and Hardness 86.5-93.6 HRA for High Performance Custom YG8 YG6 YG6X YG9C YG11C YG13C Tungsten Carbide Seal Ring with Density 12.33-15.0 g/cm³ and Hardness 86.5-93.6 HRA for High Performance Custom YG8 YG6 YG6X YG9C YG11C YG13C Tungsten Carbide Seal Ring with Density 12.33-15.0 g/cm³ and Hardness 86.5-93.6 HRA for High Performance Custom YG8 YG6 YG6X YG9C YG11C YG13C Tungsten Carbide Seal Ring with Density 12.33-15.0 g/cm³ and Hardness 86.5-93.6 HRA for High Performance Custom YG8 YG6 YG6X YG9C YG11C YG13C Tungsten Carbide Seal Ring with Density 12.33-15.0 g/cm³ and Hardness 86.5-93.6 HRA for High Performance Custom YG8 YG6 YG6X YG9C YG11C YG13C Tungsten Carbide Seal Ring with Density 12.33-15.0 g/cm³ and Hardness 86.5-93.6 HRA for High Performance

Gambar besar :  Custom YG8 YG6 YG6X YG9C YG11C YG13C Tungsten Carbide Seal Ring with Density 12.33-15.0 g/cm³ and Hardness 86.5-93.6 HRA for High Performance

Detail produk:
Tempat asal: CINA
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 5
Harga: $15-68
Kontak

Custom YG8 YG6 YG6X YG9C YG11C YG13C Tungsten Carbide Seal Ring with Density 12.33-15.0 g/cm³ and Hardness 86.5-93.6 HRA for High Performance

Deskripsi
Komposisi material: Tungsten Karbida Dan Kobalt Spesifikasi Paduan: YG8, YG6, YG6X, YG9C, YG11C, YG13C
Membentuk: Berbentuk silinder Permukaan akhir: Mengkilap
Warna: paduan hitam Kisaran kepadatan: 12.33-15.0 g/cm³
Kisaran kekerasan: 86.5-93.6 HRA Rentang TRS: 1800-3800 MPa
Tingkat porositas: A02/B00/C00 Ukuran biji -bijian: 0.4-2.4 μm
Konten WC: 69.2-94.0% Ni konten: 6.0-16.0%
konten saya: 0-7,4% Konten tac: 0-13,8%
Kustomisasi: Tersedia per gambar atau sampel pelanggan
Menyoroti:

YG8 YG6 YG6X YG9C YG11C YG13C Alloy Tungsten Carbide Seal Ring

,

High Temperature Resistance Tungsten Carbide Seal Ring

,

High Pressure Resistance Cemented Tungsten Carbide Sealing Ring

Custom Cemented Tungsten Carbide Sealing Ring

High temperature and high pressure resistant sealing ring designed for metallurgical equipment shafts.

Custom YG8 YG6 YG6X YG9C YG11C YG13C Tungsten Carbide Seal Ring with Density 12.33-15.0 g/cm³ and Hardness 86.5-93.6 HRA for High Performance 0
Product Description
 Custom YG8 YG6 YG6X YG9C YG11C YG13C Tungsten Carbide Seal Ring with Density 12.33-15.0 g/cm³ and Hardness 86.5-93.6 HRA for High Performance 1
Product Parameters
 Custom YG8 YG6 YG6X YG9C YG11C YG13C Tungsten Carbide Seal Ring with Density 12.33-15.0 g/cm³ and Hardness 86.5-93.6 HRA for High Performance 2
Grade Composition(% in weight) Physical Properties Grain size(μm)
WC Ni Ti TaC A/B/C Densityg/cm³(±0.1) HardnessHRA(±0.5) TRS Mpa(min) Porosity
KD115/YG6X 93.5 6.0 - 0.5 14.90 93.0 2700 A02/B00/C00 0.6-0.8
KD335/YG10X 89.0 10.5 - 0.5 14.40 91.8 3800 A02/B00/C00 0.6-0.8
KG6/YG6 94.0 6.0 - - 14.90 90.5 2500 A02/B00/C00 1.2-1.6
KG8/YG8 92.0 8.0 - - 14.75 90.0 3200 A02/B00/C00 1.2-1.6
KG9/YG9 91.0 9.0 - - 14.60 89.0 3200 A02/B00/C00 1.2-1.6
KG9C/YG9C 91.0 9.0 - - 14.60 88.0 3200 A02/B00/C00 1.6-2.4
KG10/KG10 90.0 10.0 - - 14.50 88.5 3200 A02/B00/C00 1.2-1.6
KG11/YG11 89.0 11.0 - - 14.35 89.0 3200 A02/B00/C00 1.2-1.6
KG11C/YG11C 89.0 11.0 - - 14.40 87.5 3000 A02/B00/C00 1.6-2.4
KG13/YG13 87.0 13.0 - - 14.20 88.7 3500 A02/B00/C00 1.2-1.6
KG13C/YG13C 87.0 13.0 - - 14.20 87.0 3500 A02/B00/C00 1.6-2.4
KG15/YG15 85.0 15.0 - - 14.10 87.5 3500 A02/B00/C00 1.2-1.6
KG15C/YG15C 85.0 15.0 - - 14.00 86.5 3500 A02/B00/C00 1.6-2.4
KD118/YG8X 91.5 8.5 - - 14.50 93.6 3800 A02/B00/C00 0.4-0.6
KD338/YG12X 88.0 12.0 - - 14.10 92.8 2200 A02/B00/C00 0.4-0.6
KD25/P25 77.4 8.5 6.5 6.0 12.60 91.8 2200 A02/B00/C00 1.0-1.6
KD35/P35 69.2 10.5 5.2 13.8 12.70 91.1 2500 A02/B00/C00 1.0-1.6
KD10/M10 83.4 7.0 4.5 4.0 13.25 93.0 2000 A02/B00/C00 0.8-1.2
KD20/M20 79.0 8.0 7.4 3.8 12.33 92.1 2200 A02/B00/C00 0.8-1.2
NOTE: Customization available per customer drawing or actual sample
 Custom YG8 YG6 YG6X YG9C YG11C YG13C Tungsten Carbide Seal Ring with Density 12.33-15.0 g/cm³ and Hardness 86.5-93.6 HRA for High Performance 3  Custom YG8 YG6 YG6X YG9C YG11C YG13C Tungsten Carbide Seal Ring with Density 12.33-15.0 g/cm³ and Hardness 86.5-93.6 HRA for High Performance 4 Custom YG8 YG6 YG6X YG9C YG11C YG13C Tungsten Carbide Seal Ring with Density 12.33-15.0 g/cm³ and Hardness 86.5-93.6 HRA for High Performance 5
Detailed Specifications
Grade Composition (% in weight) Physical Properties Equivalent domestic

WC Ni Ti Density g/cm³ (±0.1) Hardness HRA (±0.5) TRS Mpa (min) Porosity ABC Grain size (μm)
KDN6 93.8 6.0 0.2 14.6-15.0 89.5-90.5 1800 A02B00C00 0.8-2.0 YN6

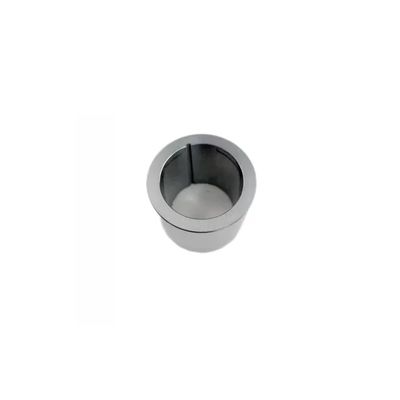

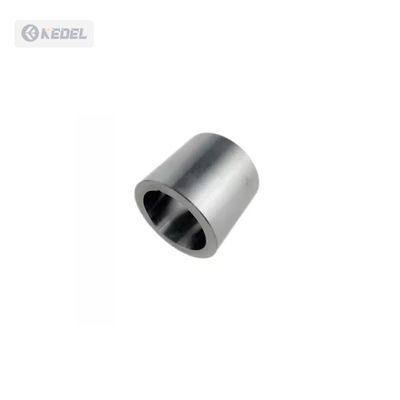

Product Images
Custom YG8 YG6 YG6X YG9C YG11C YG13C Tungsten Carbide Seal Ring with Density 12.33-15.0 g/cm³ and Hardness 86.5-93.6 HRA for High Performance 6   Custom YG8 YG6 YG6X YG9C YG11C YG13C Tungsten Carbide Seal Ring with Density 12.33-15.0 g/cm³ and Hardness 86.5-93.6 HRA for High Performance 7
Why Choose Us
 Custom YG8 YG6 YG6X YG9C YG11C YG13C Tungsten Carbide Seal Ring with Density 12.33-15.0 g/cm³ and Hardness 86.5-93.6 HRA for High Performance 8
Company Profile
Custom YG8 YG6 YG6X YG9C YG11C YG13C Tungsten Carbide Seal Ring with Density 12.33-15.0 g/cm³ and Hardness 86.5-93.6 HRA for High Performance 9
Exhibition
 Custom YG8 YG6 YG6X YG9C YG11C YG13C Tungsten Carbide Seal Ring with Density 12.33-15.0 g/cm³ and Hardness 86.5-93.6 HRA for High Performance 10  Custom YG8 YG6 YG6X YG9C YG11C YG13C Tungsten Carbide Seal Ring with Density 12.33-15.0 g/cm³ and Hardness 86.5-93.6 HRA for High Performance 11  Custom YG8 YG6 YG6X YG9C YG11C YG13C Tungsten Carbide Seal Ring with Density 12.33-15.0 g/cm³ and Hardness 86.5-93.6 HRA for High Performance 12
FAQ
Q: How to obtain an accurate quotation from Kedel Tools?
A: Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models. This will allow us to provide you with a more accurate quote.
Q: How does our company ensure the quality of its products?
A: We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.
Q: How long does a typical production cycle take?
A: For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.
Q: What is our company’s payment method?
A: We accept wire transfers, L/C, ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.

In our journey at Kedel Technology Co., Ltd. in Chengdu, every encounter with you is our honor. We are well aware that being able to stop here among the many choices is our greatest support and recognition. Your satisfaction is our relentless pursuit, and every positive review and repurchase is the driving force that inspires us to keep moving forward.
