Customized YG9C YG11C YG13C Tungsten Carbide Rod with High Hardness and Wear Resistance for Drill Bits and Milling Cutters

Customized YG9C YG11C YG13C Tungsten Carbide Rod with High Hardness and Wear Resistance for Drill Bits and Milling Cutters
Customized YG9C YG11C YG13C Tungsten Carbide Rod with High Hardness and Wear Resistance for Drill Bits and Milling Cutters Customized YG9C YG11C YG13C Tungsten Carbide Rod with High Hardness and Wear Resistance for Drill Bits and Milling Cutters Customized YG9C YG11C YG13C Tungsten Carbide Rod with High Hardness and Wear Resistance for Drill Bits and Milling Cutters Customized YG9C YG11C YG13C Tungsten Carbide Rod with High Hardness and Wear Resistance for Drill Bits and Milling Cutters Customized YG9C YG11C YG13C Tungsten Carbide Rod with High Hardness and Wear Resistance for Drill Bits and Milling Cutters Customized YG9C YG11C YG13C Tungsten Carbide Rod with High Hardness and Wear Resistance for Drill Bits and Milling Cutters

Gambar besar :  Customized YG9C YG11C YG13C Tungsten Carbide Rod with High Hardness and Wear Resistance for Drill Bits and Milling Cutters

Detail produk:
Tempat asal: Sichuan, Cina
Nama merek: Kedel
Nomor model: YG8
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 5
Harga: $2-12
Kontak

Customized YG9C YG11C YG13C Tungsten Carbide Rod with High Hardness and Wear Resistance for Drill Bits and Milling Cutters

Deskripsi
Panjang keseluruhan: 1.5 in Komposisi material: Tungsten Karbida Dan Kobalt
Kelas Paduan: YG8, YG6, YG6X, YG9C, YG11C, YG13C Kisaran kepadatan: 12.00-14.90 g/cm³
Kisaran kekerasan: 86.5-93.6 HRA Rentang TRS: 2000-3800 MPa
Ukuran biji -bijian: 0.4-2.4 μm Tingkat porositas: A02/B00/C00
Rentang diameter: 1,5-32mm Toleransi diameter: ±0,5_+0,4 mm (Tidak Diratakan), h6 (Tanah Halus)
Toleransi panjang: +2_+6 mm (Tidak Diratakan), ±2_+6 mm (Tanah Halus) Membentuk: Berbentuk silinder
Permukaan akhir: Mengkilap Jenis Potong: Potongan tunggal
Jenis mesin: Listrik
Menyoroti:

YG9C Tungsten Carbide Rod

,

YG11C Cemented Carbide Rod

,

YG13C Hard Alloy Rod

Customized Tungsten Carbide Alloy Rod

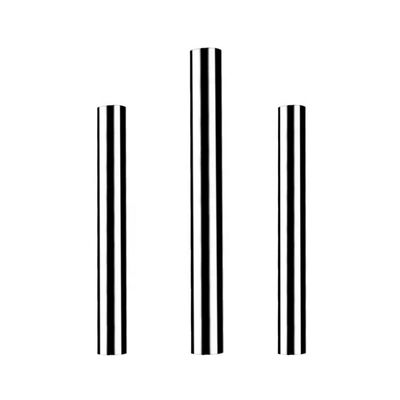

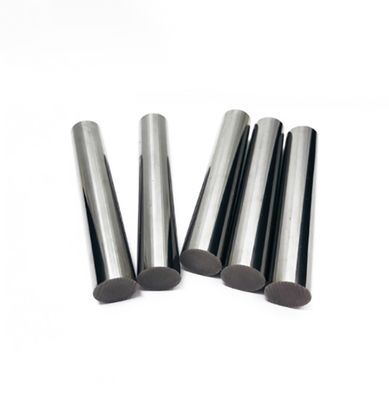

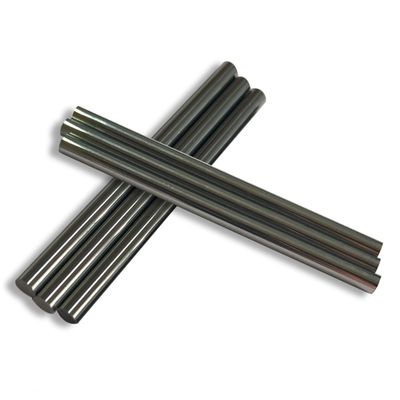

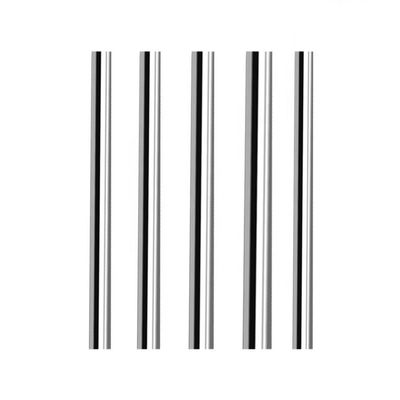

High hardness and wear resistant tungsten carbide alloy rods for manufacturing drill bits and milling cutters.
Customized YG9C YG11C YG13C Tungsten Carbide Rod with High Hardness and Wear Resistance for Drill Bits and Milling Cutters 0 Customized YG9C YG11C YG13C Tungsten Carbide Rod with High Hardness and Wear Resistance for Drill Bits and Milling Cutters 1
Product Parameters
Customized YG9C YG11C YG13C Tungsten Carbide Rod with High Hardness and Wear Resistance for Drill Bits and Milling Cutters 2
Grade Composition (% in weight) Physical Properties Grain size (μm)
WC Ni Ti TaC Density g/cm³ (±0.1) Hardness HRA (±0.5) TRS Mpa (min) Porosity A/B/C
KD115/YG6X93.56.0-0.514.9093.02700A02/B00/C000.6-0.8
KD335/YG10X89.010.5-0.514.4091.83800A02/B00/C000.6-0.8
KG6/YG694.06.0--14.9090.52500A02/B00/C001.2-1.6
KG8/YG892.08.0--14.7590.03200A02/B00/C001.2-1.6
KG9/YG991.09.0--14.6089.03200A02/B00/C001.2-1.6
KG9C/YG9C91.09.0--14.6088.03200A02/B00/C001.6-2.4
KG10/KG1090.010.0--14.5088.53200A02/B00/C001.2-1.6
KG11/YG1189.011.0--14.3589.03200A02/B00/C001.2-1.6
KG11C/YG11C89.011.0--14.4087.53000A02/B00/C001.6-2.4
KG13/YG1387.013.0--14.2088.73500A02/B00/C001.2-1.6
KG13C/YG13C87.013.0--14.2087.03500A02/B00/C001.6-2.4
KG15/YG1585.015.0--14.1087.53500A02/B00/C001.2-1.6
KG15C/YG15C85.015.0--14.0086.53500A02/B00/C001.6-2.4
KD118/YG8X91.58.5--14.5093.63800A02/B00/C000.4-0.6
KD338/YG12X88.012.0--14.1092.82200A02/B00/C000.4-0.6
KD25/P2577.48.56.56.012.6091.82200A02/B00/C001.0-1.6
KD35/P3569.210.55.213.812.7091.12500A02/B00/C001.0-1.6
KD10/M1083.47.04.54.013.2593.02000A02/B00/C000.8-1.2
KD20/M2079.08.07.43.812.3392.12200A02/B00/C000.8-1.2
NOTE: Customization available per customer drawing or actual sample
Unground Rods Specifications
D (mm) Tolerance L (mm) Tolerance
1.5-32±0.5/+0.4310/330+2/+6
Fine Grounded Rods Specifications
D (mm) Tolerance L (mm) Tolerance
1.5-32h6310/330±2/+6
