Detail produk:
|
| Bahan: | Paduan Semen | Nilai: | YG10X |
|---|---|---|---|
| Permukaan: | Dipoles | ukuran: | 6mm * 300mm |
| Fitur: | Antiust\tahan lama | MOQ: | 10 buah |
| Kerajinan Produk: | HIP disinter | Melayani: | OEM, ODM |
| Menyoroti: | Tungsten Carbide Batang Dipoles,Batang Dipoles 2mm,Batang Bulat 330mm |
||

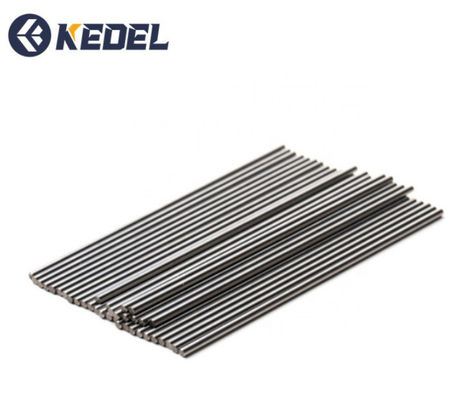

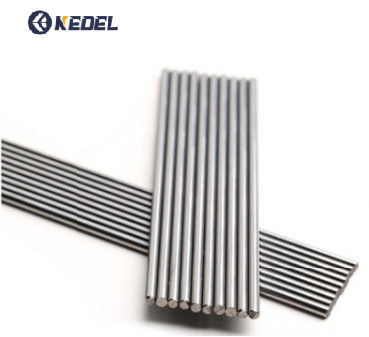

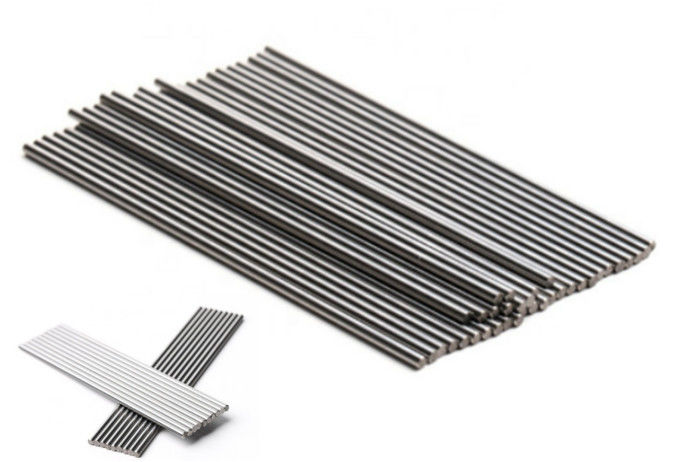

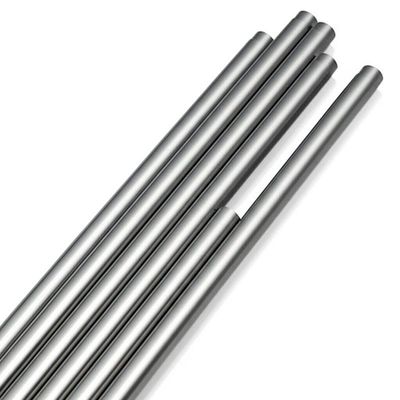

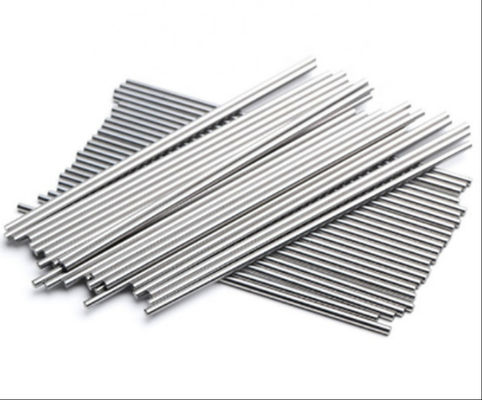

batang tungsten karbida:
1. Nilai: 10% kobalt dan 12% kobalt merekomendasikan
2. Ukuran: Diameter 4--30mm tersedia
3. Sertifikasi: ISO9001,
4. Cermin dipoles hingga h6 tersedia
5. Dimensi Metrik dan Inci tersedia
6. Panjang standar: 330mm/310mm dan dapat dipotong menjadi panjang yang berbeda sesuai persyaratan
harga murah tungsten carbide solid round rod Fitur
1. Kualitas bagus dan harga terjangkau
2. 100% bahan baku
3. Ketahanan abrasi, panas dan korosi yang baik
4. Berbagai ukuran dan bentuk, grade
Proses produksi:
Berikut ini adalah proses produksi batang tungsten carbide, untuk memastikan kualitas tinggi, kami menjamin pelanggan kami:
1. Semua bahan diuji kepadatan, kekerasan dan TRS sebelum digunakan.
2. Setiap produk tunduk pada pemeriksaan dalam proses dan akhir.
3. Setiap batch produk dapat ditelusuri kembali.
Ukuran umum:
| Batang Karbida Padat (Panjang penuh) | |||||
| Nominal Dia | D(mm) | D(mm) | Panjang | Perkataan | |
| D (mm) | Tidak di-ground | h6 | mm | ||
| 0,5 | 0,7 | 0,5 | 310-330 | ||
| 0,8 | 1 | 0,8 | 310-330 | ||
| 1 | 1.2 | 1 | 310-330 | ||
| 1.5 | 1.7 | 1.5 | 310-330 | ||
| 1/16" | 1,5875 | 1.8 | 1,5875 | 12"-13" | ukuran inci |
| 2 | 2.2 | 2 | 310-330 | ||
| 2.35 | 2.55 | 2.35 | 310-330 | ||
| 3/32" | 2.38 | 2.6 | 2.38 | 12"-13" | ukuran inci |
| 2.5 | 2.7 | 2.5 | 310-330 | ||
| 3 | 3.2 | 3 | 310-330 | ||
| 1/8" | 3.175 | 3.4 | 3.175 | 12"-13" | ukuran inci |
| 3.5 | 3.7 | 3.5 | 310-330 | ||
| 5/32 | 3.968 | 4.2 | 3.968 | 12"-13" | ukuran inci |
| 4 | 4.2 | 4 | 310-330 | ||
| 4.5 | 4.5 | 310-330 | |||
| 3/16" | 4.7625 | 5 | 4.762 | 12"-13" | ukuran inci |
| 5 | 5.2 | 5 | 310-330 | ||
| 5.5 | 5.7 | 5.5 | 310-330 | ||
| 6 | 6.2 | 6 | 310-330 | ||
| 1/4" | 6.35 | 6.6 | 6.35 | 12"-13" | ukuran inci |
| 6.5 | 6.7 | 6.5 | 310-330 | ||
| 7 | 7.2 | 7 | 310-330 | ||
| 7.5 | 7.7 | 7.5 | 310-330 | ||
| 5/16" | 7.937 | 8.2 | 7.937 | 12"-13" | ukuran inci |
| 8 | 8.2 | 8 | 310-330 | ||
| 8.5 | 8.7 | 8.5 | 310-330 | ||
| 9 | 9.2 | 9 | 310-330 | ||
| 9.5 | 9.7 | 9.5 | 310-330 | ||
| 3/8" | 9.525 | 9.7 | 9.525 | 12"-13" | ukuran inci |
| 10 | 10.2 | 10 | 310-330 | ||
| 10.5 | 10.7 | 10.5 | 310-330 | ||
| 11 | 11.2 | 11 | 310-330 | ||
| 7/16" | 11.11 | 11.3 | 11.11 | 12"-13" | ukuran inci |
| 11.5 | 11.7 | 11.5 | 310-330 | ||
| 12 | 12.2 | 12 | 310-330 | ||
| 12.5 | 12.7 | 12.5 | 310-330 | ||
| 1/2" | 12.7 | 12.9 | 12.7 | 12"-13" | ukuran inci |
| 13 | 13.2 | 13 | 310-330 | ||
| 13.5 | 13.7 | 13.5 | 310-330 | ||
| 14 | 14.2 | 14 | 310-330 | ||
| 9/16" | 14.288 | 14.5 | 14.288 | 12"-13" | ukuran inci |
| 14.5 | 14.7 | 14.5 | 310-330 | ||
| 15 | 15.2 | 15 | 310-330 | ||
| 15.5 | 15.7 | 15.5 | 310-330 | ||
| 5/8" | 15.875 | 16.1 | 15.875 | 12"-13" | ukuran inci |
| 16 | 16.2 | 16 | 310-330 | ||
| 16.5 | 16.7 | 16.5 | 310-330 | ||
| 17 | 17.2 | 17 | 310-330 | ||
| 17.5 | 17.7 | 17.5 | 310-330 | ||
| 18 | 18.2 | 18 | 310-330 | ||
| 18.5 | 18.7 | 18.5 | 310-330 | ||
| 19 | 19.2 | 19 | 310-330 | ||
| 3/4" | 19.05 | 19.3 | 19.05 | 12"-13" | ukuran inci |
| 19.5 | 19.7 | 19.5 | 310-330 | ||
| 20 | 20.2 | 20 | 310-330 | ||
| 20.5 | 20.7 | 20.5 | 310-330 | ||
| 21 | 21.2 | 21 | 310-330 | ||
| 21.5 | 21.7 | 21.5 | 310-330 | ||
| 22 | 22.2 | 22 | 310-330 | ||
| 22.5 | 22.7 | 22.5 | 310-330 | ||
| 23 | 23.2 | 23 | 310-330 | ||
| 23.5 | 23.7 | 23.5 | 310-330 | ||
| 24 | 24.2 | 24 | 310-330 | ||
| 24.5 | 24.7 | 24.5 | 310-330 | ||
| 25 | 25.2 | 25 | 310-330 | ||
| 1" | 25.4 | 25.7 | 25.4 | 12"-13" | ukuran inci |
| 26 | 26.3 | 26 | 310-330 | ||
| 27 | 27.2 | 27 | 310-330 | ||
| 28 | 28.2 | 28 | 310-331 | ||
| 29 | 29.2 | 29 | 310-333 | ||
| 30 | 30.2 | 30 | 310-334 | ||
| 31 | 31.2 | 31 | 310-335 | ||
| 1-1/4" | 31.75 | 32 | 31.75 | 12"-13" | ukuran inci |
| 32 | 32.2 | 32 | 310-336 | ||
| 33 | 33.2 | 33 | 310-337 | ||
| 34 | 34.2 | 34 | 310-338 | ||
| 35 | 35.2 | 35 | 310-339 | ||
| 36 | 36.2 | 36 | 310-340 | ||
| 37 | 37.2 | 37 | 310-341 | ||
| 38 | 38.2 | 38 | 310-342 | ||
| 1-1/2" | 38.1 | 38.4 | 38.1 | 12"-13" | ukuran inci |
| 39 | 39.2 | 39 | 310-343 | ||
| 40 | 40.2 | 40 | 310-344 | ||
| 42 | 42.2 | 42 | 310-344 | ||
Bagan Nilai Tungsten Carbide Rods:
| Nilai | kelas ISO |
Ukuran butir (um) |
Bahan pengikat |
kepadatan (g/cm³) |
Kekerasan (HV30) |
Kekerasan (HRA) |
TRS (N/m㎡) |
| KD10F | K05-K10 | 0,4 | 6 | 14.9 | 1950 | 93.0 | 2800 |
| KD10M | K05-K10 | 1.2 | 6 | 14.8 | 1510 | 91.0 | 2600 |
| KD15 | K10-K20 | 0,8 | 8 | 14.6 | 1610 | 92.0 | 3000 |
| KD20(YG10X) | K20-K30 | 0,8 | 10 | 14.4 | 1610 | 92.0 | 3800 |
| KD20F(YL10.2) | K20-K30 | 0,6 | 10 | 14.5 | 1570 | 91.5 | 3600 |
| KD25UF | K30-K40 | 0,4 | 12 | 14.2 | 1610 | 92.0 | 4000 |
| KD30M | K30-K40 | 1.5 | 15 | 14.2 | 1150 | 87.5 | 3200 |
